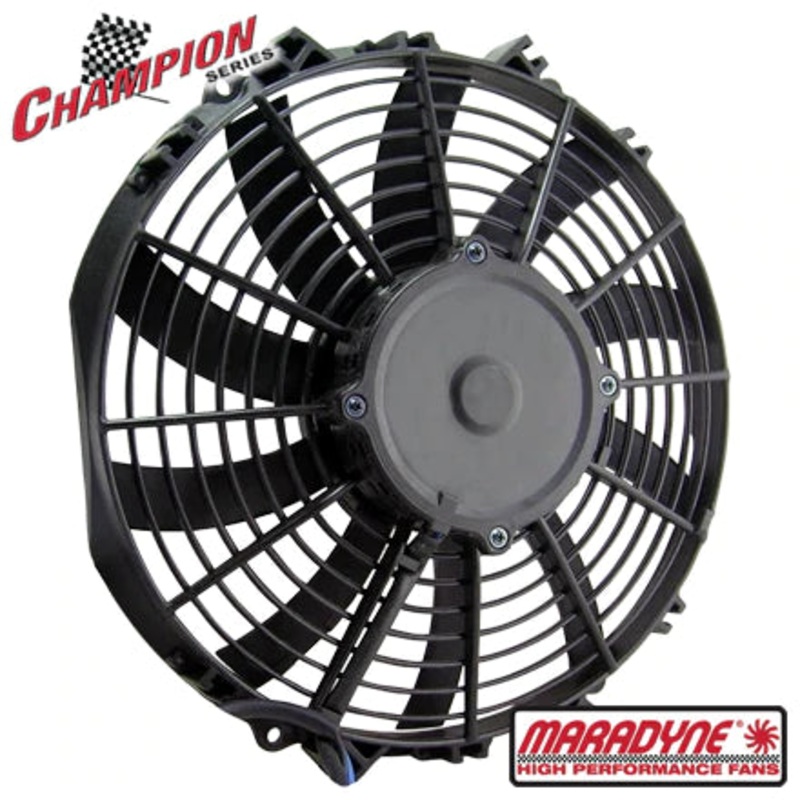

Maradyne Champion Series Fan – 12″ / 305mm Skew 12V – 1548 CFM – 225W
TheM122K(EF8912) 12V,12″ MaradyneChampion SeriesFanfeatures a reversibleblade design whichis ratedup to1548cfm /2630m3/hin the standard puller configuration.
The MaradyneChampion SeriesEF891212″ Thermo Fanfeatures a fully-sealed 225W high power motor (IP68) and is backed with a 12-month manufacturers warranty (see below).
| M122K12“THERMO FAN DETAILS | |
|---|---|
| Fan Model # | M122K |
| Fan Series | Champion Series |
| Voltage | 12V |
| Motor | 225W |
| Flow Type | Puller or Pusher (ships as puller) |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 13.3 |
| CFM | 1548 |
| M3/H | 2630 |
| Included in Box |
|
| M122K12” THERMO FAN DIMENSIONS | |
|---|---|
| A | 318mm / 12.52″ |
| B | 336mm/ 13.23″ |
| C | 264.7mm / 10.42″ |
| D | 374.4mm/ 14.74″ |
| E | 81mm / 3.19″ |
