Maradyne Champion Series Fan – 10″
Maradyne Champion Series Fan - 10" - 950 CFM - 130WTheM103k 12v10" MaradyneChampion SeriesFanfeatures a reversibleblade design whichis ratedup to950cfm /1614m3/hin the standard puller configuration.The MaradyneChampion SeriesEF890710" Thermo Fanfeatures a
Category: maradyne fan

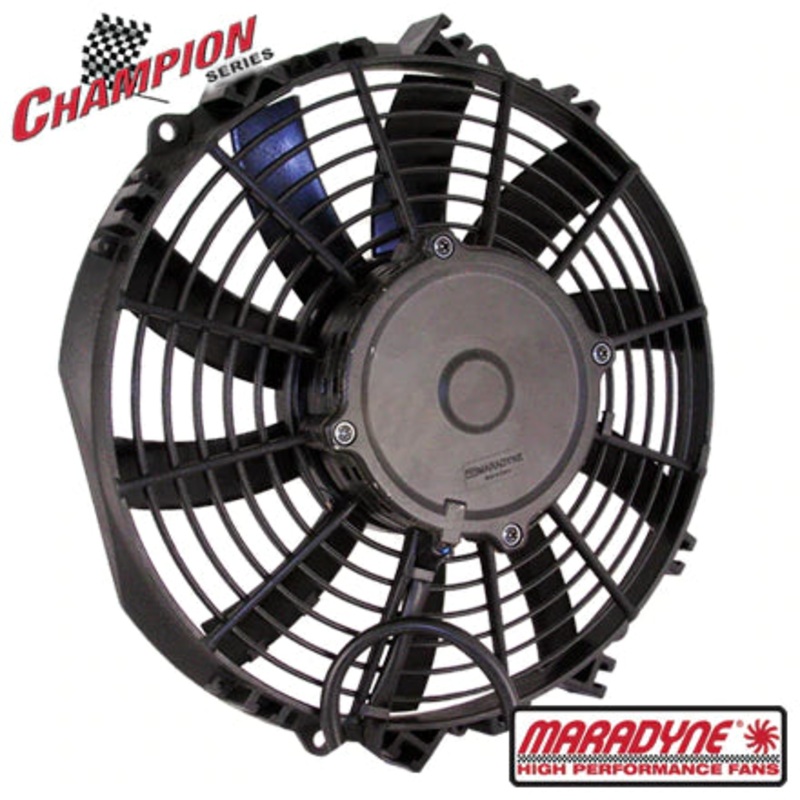

Maradyne Champion Series Fan – 10″ – 950 CFM – 130W
TheM103k 12v10″ MaradyneChampion SeriesFanfeatures a reversibleblade design whichis ratedup to950cfm /1614m3/hin the standard puller configuration.
The MaradyneChampion SeriesEF890710″ Thermo Fanfeatures a fully-sealed 130W motor (IP68) of superior quality and is backed with a 12-month manufacturers warranty (see below).
| M103K-2410“THERMO FAN DETAILS | |
|---|---|
| Fan Model # | M103K-24 |
| Fan Series | Champion Series |
| Voltage | 24V |
| Motor | 130W |
| Flow Type | Puller or Pusher (ships as puller) |
| Blade Diam. | 10inch (254mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 7.9 |
| CFM | 950 |
| M3/H | 1614 |
| Included in Box |
|
| M103K-2410″ THERMO FAN DIMENSIONS | |
|---|---|
| A | 269mm / 10.59″ |
| B | 284.5mm/ 11.2″ |
| C | 228.3mm / 8.99″ |
| D | 323mm/ 12.71″ |
| E | 63mm / 2.48″ |
