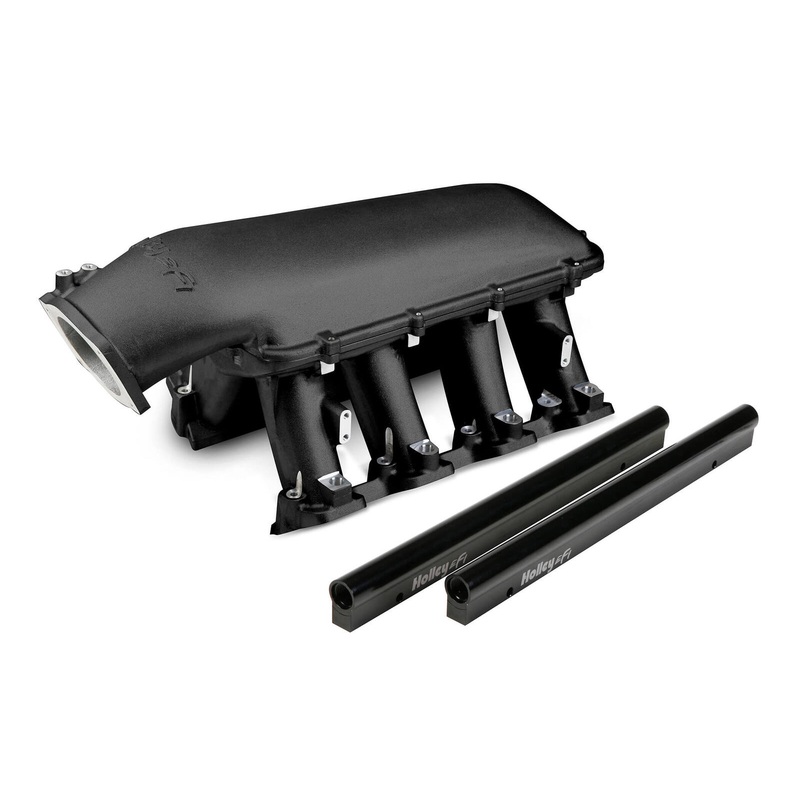

Holley Intake Manifold, EFI, Hi-Ram, 12.32/11.00 in. Height, 1500-7000 RPM, GM SB Gen III/IV (LS), Black, Each

Holley Intake Manifold, EFI, Hi-Ram, 12.32/11.00 in. Height, 1500-7000 RPM, GM SB Gen III/IV (LS), Black, Each

In stock

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowi

$1,468.00 $146.00
Category:
Share :

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Cast aluminum construction.

Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

  • Base Plenum Top Mounting Flange Height 8.42 to the lifter valley cover flange on engine block.
  • Total Height with 92/102mm EFI Plenum Top 12.32 to the lifter valley cover flange on engine block.
  • Port Size 2.49 Height x 1.21 Wide
  • Mounting Flange Gasket Type Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type 3/32 Round O-ring Cord
  • Throttle Body Flange Location, with 92mm EFI Plenum Top : Height 8.42 (from engine block lifter valley cover flange), Longitudinal Location 3.84 (forward from engine block front flange), Angle 25 deg. (down from vertical)
  • Runner Length 6.58, As-Cast Runner Cross-Sectional Area Tapered 4.25 in to 2.53 in
